Early ‘Razorback’ versions of the Republic P-47 Thunderbolt escort fighter.
History, development, service, specifications, pictures and 3D model.
Republic P-47 Thunderbolt
Table of Contents
Republic P-47 Thunderbolt
Type: US escort fighter and fighter-bomber.
The Republic P-47 Thunderbolt is a World War II-era American fighter aircraft, widely regarded as one of the largest and heaviest single-engine fighters ever built.
Overview
– Role: Fighter-bomber / Escort fighter
– Manufacturer: Republic Aviation
– First flight: May 6, 1941
– Introduced: 1942
– Primary users: United States Army Air Forces (USAAF), Free French Air Force, other Allied air forces
Design and Features
– The P-47 was powered by a Pratt & Whitney R-2800 Double Wasp 18-cylinder radial engine, providing around 2,000 horsepower.
– It had a robust airframe and heavy armor, making it very durable and able to sustain significant battle damage.
– The aircraft was equipped with eight .50 caliber (12.7 mm) M2 Browning machine guns, four in each wing.
– It had a distinctive bubble canopy in later versions, improving pilot visibility.
– The P-47 was also capable of carrying bombs and rockets, making it an effective fighter-bomber.
Performance
– Maximum speed: Approximately 433 mph (697 km/h) at 30,000 ft
– Range: About 800 miles (1,290 km) on internal fuel, extended with drop tanks
– Service ceiling: Around 43,000 ft (13,100 m)
– Armament: 8 × .50 caliber machine guns, up to 2,500 lbs of bombs, and rockets
Combat History
– The P-47 was heavily used in both the European and Pacific theaters.
– It excelled in high-altitude escort missions, protecting bombers on long-range raids.
– Its ruggedness and heavy armament made it highly effective in ground-attack roles, strafing enemy troops, vehicles, and installations.
– The Thunderbolt earned a reputation for survivability and firepower.
Legacy
– The P-47 Thunderbolt played a crucial role in achieving air superiority during WWII.
– It is remembered as one of the most effective and versatile American fighters of the war.
– Many P-47s remain in flying condition today and are popular at airshows.

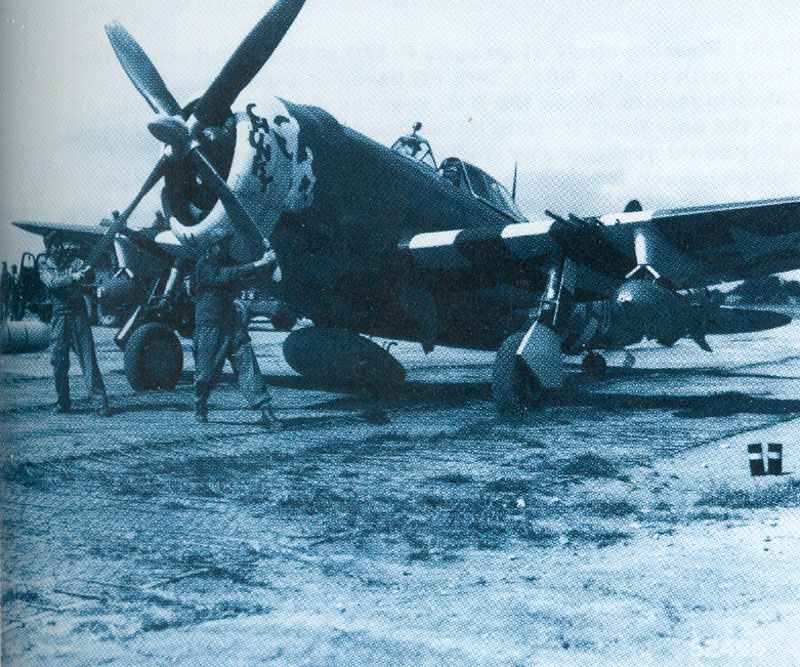

History
The Republic P-47 ‘Razorback’ Thunderbolt was an outstanding fighter, both in the bomber escort and ground-attack roles. It was the largest and heaviest single-engined fighter built during WW2 . It was the last in a series of aircraft that began in 1936 with the Seversky P-35 and included the P-43 Lancer in 1940.
Common to all these aircraft was their designer, Alexander Kartveli. In the Republic P-47 Thunderbolt he produced an aircraft that brought the formula to fruition and made up for less successful earlier attempts.
A total of 15,634 Thunderbolts were built in several versions. The ‘Razorback, as the first models were called by pilots and ground personnel, was employed intensively by the USAAF and RAF.
After initiating the unlucky P-43 Lancer project, chief Republic designer Kartveli began work in 1939 on two other fighters derived from the Lancer. These were the AP-4 and AP10. The AP-4 was derived from the P-35 and was powered by a radial engine, while the AP-10 was designed as a light fighter around the liquid-cooled Allison V-12 engine.
Paradoxically, the massive P-47 Razorback was derived from the lightweight AP-10. For a single-seater the P-47 was a huge aircraft, weighing almost nine tons at take-off. Indeed, when Kartveli submitted the AP-10 design to the USAAC on August 1, 1939, it was rejected, and he was asked to develop a larger and more powerful version.
In November of that year the company signed a contract for two prototypes (the XP-47 and the XP-47 A) to be powered by liquid-cooled Allison engines.
The choice of this power plant turned out to be a mistake, however. Early combat experience from Europe had made it clear that fighters had to be heavily armed and armored, as well as offering higher performance. The Allison engine was not powerful enough, nor could it provide satisfactory performance at high altitude.
Kartveli therefore developed an alternative project around the most powerful engine then available, the new 2,000 hp Pratt & Whitney Double Wasp radial. He literally designed his aircraft around this large engine and its complex exhaust-gaspowered supercharger, submitting the scheme to the USAAC in June 1940. This time the project, the XP-47B, was accepted without reservations.
A first order for 773 aircraft, worth $56.5 million, was placed while the design was still on the drawing board. Of these, 170 were built as P-47Bs, 602 as P-47Cs and one as the pressurized XP-47E.
The prototype, the XP-47B, took to the air on May 6, 1941, after final adjustments to the engine and supercharger. During flight tests the Thunderbolt showed what it could do, reaching speeds over 410 mph (ca. 660 km/h) and climbing to 15,000ft (ca. 4,572 m) within five minutes.
It achieved these results at a take-off weight of almost five and a half tons.
In March 1942 the first production models started coming off the assembly line, and in April 1943 the 56th Fighter Group, attached to the 8th Air Force in Britain, was the first to take the new fighter into combat over Europe.

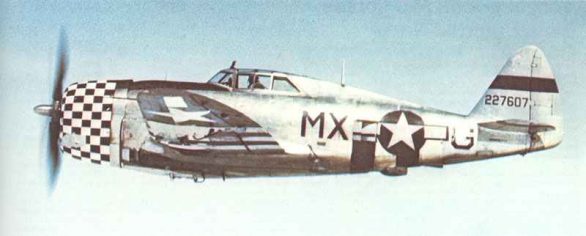

The P-47 Razorbacks Thunderbolts were successful escorting B-17 Fortress and B-24 Liberator bombers.
Production really hit its stride with the P-47D Thunderbolt, the most numerous variant. The P-47D’s engine gave more power at high altitude, and this version could carry a heavier bomb load. These Thunderbolts were built in several production batches and with a host of sub-designations.
Beginning with the P-47D-25, they incorporated a modification which had been introduced by the P-51 Mustang: a transparent teardrop canopy that gave the pilot 360° visibility.
Users: Australia, Brazil, France, Russia, RAF, USAAF, Mexico (during WW2 for all versions).
Animated 3D model Republic P-47 ‘Razorback’ Thunderbolt
Specifications Republic P-47 ‘Razorback’ Thunderbolt C and early D models
Specifications:
Specification | P-47C | P-47D (early) |
|---|---|---|
Type | Escort fighter | |
Power plant | one Pratt & Whitney R-2800-59 Double Wasp 18-cylinder two-row radial engine with 2,300 hp | 2,800 hp |
Accommodation | 1 | |
Wing span | 40 ft 9.5 in (12.40 m) | |
Length overall | 36 ft 1 in (11.03 m) | |
Height overall | 14 ft 2 in (4.30 m) | |
Weight empty | c.9,100 lb (c.4,122 kg) | 10,700 lb (4,853 kg) |
Weight loaded | 14,925 lb (6,770 kg) | 19,400 lb (8,800 kg) |
Maximum speed (at 30,000 ft) | 433 mph (697 km/hr) | 428 mph (690 km/hr) |
Initial climb | 2,800 ft/min. (855 m/min.) | |
Service ceiling | 42,000 ft (12,800 m) | |
Range | 550 miles (885 km) | from August 1943 with drop tanks c.897 miles (1,433 km) |
Armament:
Specification | P-47C | P-47D (early) |
|---|---|---|
in the wings | 8 x 0.50in Colt-Browning M2 machine guns (800 rpm; velocity 2,810 f.s, bullet weight 1.71 Oz., range 7,200 yds) each with 267, 350 or 425 rounds | = |
external load | 500 lb of bombs | maximum of 2,500 lb of tanks, bombs or rockets |
Service statistics:
P-47 | figures |
|---|---|
First flight XP-47 | 6 May 1941 |
Production delivery P-47B | 18 March 1942 |
Production delivery P-47D | February 1943 |
First combat mission (P-47B) | April 1943 |
Final delivery P-47N | December 1945 |
Unit cost | $ 73,100 |
Production figures | 170 P-47B, 602 P-47C; Total: 15,683 |
No. of Sorties in Europe 43-45 (for all P-47) | 423,435 (record) |
Bomb Tonnage in Europe 43-45 | 113,963 (record for fighter-bombers) |
US Lost in Combat in Europe 43-45 | 3,077 |
Enemies claimed Destroyed in air, Europe 43-45 | 3,082 |
Enemies claimed Destroyed on ground, Europe 43-45 | 3,202 |
References and literature
The Encyclopedia of Weapons of World War II (Chris Bishop)
Combat Aircraft of World War II (Bill Gunston)
Technik und Einsatz der Kampfflugzeuge vom 1. Weltkrieg bis heute (Ian Parsons)
Das große Buch der Luftkämpfe (Ian Parsons)
Luftkrieg (Piekalkiewicz)
Flugzeuge des 2. Weltkrieges (Andrew Kershaw)
World Aircraft World War II (Enzo Angelucci, Paolo Matricardi)
Kampfflugzeuge (Bill Gunston)
Walk Around – P-47 Thunderbolt (Lou Drendler)
