M4 Sherman

US M4 Sherman medium tank series with 75 mm gun of WW2.
History, development, service, specifications, statistics, pictures and 3D model.

Sherman of the US Army with infantry fighting from the tank
A posed picture of a Sherman of the US Army with infantry fighting from the tank. Infantry fought only rarely from tanks. Usually they followed it and used it as a shield. Only the Red Army made an exception.

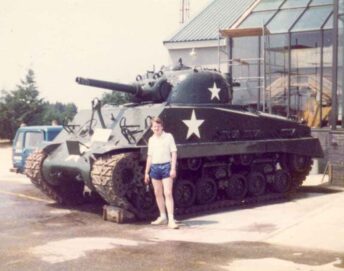

M4 Sherman
Type: US medium army tank.


Development of the medium tank M3 Lee/Grant were definitely carried out as an advancement of the M2A1 on the distinct awareness that it was to be regarded as a temporary development to have a tank with 75 mm gun armament into manufacturing and operation as soon as practical.

While development had been undertaken on the M3 the Armored Force Board drafted specifications for its successor having a 75 mm gun inside a 100% traversing turret. Ultimate M3 working blueprints were finished in March 1941, and Rock Island Arsenal provided the Armored Force Board 5 recommended plans for the M4 Sherman at a conference the subsequent month.
Probably the most uncomplicated design had been picked, which required utilizing the M3 medium chassis, transmission, power unit, suspension, and some other mechanical components, unaffected, as well as featuring an entirely fresh hull top, both welded or cast, having a central turret mounting the 75 mm gun. The 37 mm gun had been rejected and a machine gun cupola ended up being maintained on the fresh turret. Doors had been created in every side of the hull as in the M3 Lee.

Named Medium Tank T6, this tank was assembled in wooden mock-up kind in May 1941 for Armored Force Board authorization, together with a pilot design, with cast hull and minor modifications including removal of the cupola, was finalized at Aberdeen Proving Ground on 19th September 1941.

It’s luring to point out that the T6 had been inspired, or even cloned somewhat, from the Canadian Ram in view of its similarity. Documented facts (as well as the chronology of events) disprove this, on the other hand. An early manufacturing Ram had been delivered from Montreal Locomotive works in July 1941 for tests at Aberdeen Proving Ground which continued until October that year, but APG’s record about the Ram was interested just with its compatibility to the M3 Lee and featured not any remark on its significance to the T6 development.

At the same time the German Operation Barbarossa against the Soviet Union in June 1941 revealed that possibility of US participation in WW2 in Europe might rise during the following 12 months. On President Roosevelt’s personal requests tank manufacturing schedules for 1942, provisionally fixed at One Thousand medium tanks per month, had been doubled.
For this purpose, further plants were necessary and Pacific Car & Foundry, Fisher, Ford, and Federal Machine & Welder had been included to the number of factories arranged to produce the latest medium tank. In October 1941, the T6 became standard as the Medium Tank M4 and blueprints were created to release the M4 Sherman on to the manufacturing line, in these factories producing M3 Lees, at several practical time at the beginning of 1942. This implies that M4 medium vehicles would be assembled at a whole of Eleven factories during 1942.

A primary suggestion was that a subsequent purpose-built tank manufacturing factory be constructed at the production lines of Detroit Arsenal. In September 1941 Fisher had been instructed to assemble and manage this plant at Grand Blanc, Michigan. Constructing of Grand Blanc Tank Arsenal, created right away to produce M4s, had been begun in January 1942 and tank manufacturing started the next July, however Fisher had, present, started manufacturing M4s in one of the present factories.

The M4 Sherman pilot unit was assembled by Lima Locomotive works in February 1942 varying from the T6 mainly in the removal of the hull side doors. Total manufacturing in 3 factories, Lima, Pressed Steel, and Pacific Car & Foundry began the next month, every one of these original manufacturing models being cast hull tanks, named M4A1. From the fall of 1942 all the other factories within the program had been entirely in manufacturing, and in October 1942, during Second Alamein, the initial M4 medium tanks went into battle with the British 8th Army.


The M4 Sherman line had been by far the most largely manufactured, most commonly used, as well as most essential of all the tanks operating by US, British, as well as other allied armies in WW2.
Although it is not really the most efficient Allied tank in qualitative conditions, and definitely unfavorable in hitting power as well as armor to the top German and Soviet medium tanks – like the Panzer V Panther or T-34 tank – the M4 medium tank (commonly regarded by its English name of M4 Sherman) enjoyed the benefits of usability of servicing, stability, speed, ruggedness, as well as a simple layout.

For comparison, average number of hits to knock out each type of tank (Western Europe 1944-45):

Tank TypeAverage number of hitsAverage number of penetrations
Tiger I4.22.6
Panzer V Panther2.551.9
M4 Sherman1.631.55
Panzer IV1.21.2

The firepower of the T-34-76 and the M4 Sherman is considered similar on the earlier version because the Russian 76 mm gun on the T-34-76 was similar to the 75 mm Sherman gun.

These were the most essential aspects for a tank being mass-produced in commercial factories without any qualifications of army knowledge in peace-time, in order to usually use by conscript soldiers with instruction hours restricted by the requirements of warfare. When it comes to cost versus efficiency, the M4 Sherman had been quite fitted to the requirements of the time, a truth indicated in the overall production of in excess of 40,000 vehicles (and related AFVs) while using M4 chassis within the years 1942-1946. Sherman tanks were in action by every allied army in almost every armor purpose on every battling front.

The Medium Tank M4 enjoyed the identical standard chassis as the M3 Lee medium tank, with suspension, vertical volute, front drive, and rear engine. Besides very earlier types, the bogies had been modified, nevertheless, in order that the return rollers had been fixed behind, rather than on top of, the spring units. Hull had been either cast, welded, or welded with cast/rolled nose, while the 75 mm gun was placed in an uncomplicated cast turret and featured with a gyrostabilizer like in the M3 Lee.
At first the power plant was a Continental R-975 air-cooled radial engine, but an ever persistent lack of this specific Wright-built power system (which was primarily a plane power plant and required therefore by the aero industry) pressured the usage of other engines, giving increase of the major manufacturing versions. The M4 Sherman had a 5-man crew, could fire AP, or HE shells, had a top armor thickness of 50 mm (more on altered and later types) got controlled differential steering, weighed from 33 (short) tons, gross, and had the best speed of 24-30 mph (ca. 48 km/h) depending on version. There have been a lot of detail modifications and enhancements in Sherman types throughout their manufacturing time.

Users: US, Britain, Russia, Free-French and most other Allied forces.

M4A3 Sherman

Standard production M4A3 Sherman
Standard production M4A3 Sherman (Ford-Built).

5th model in manufacturing, this specific type had a welded hull and was equipped with a 500 hp Ford GAA V-8 gasoline power plant special created for this tank. This became the manufacturing model most preferred by the US Army and the majority of these had been preserved for US use, Lend-Lease deliveries being primarily focused on other versions. Manufacturing adjustments as for M4 besides that this design had the one-piece cast nose for its entire manufacturing time.

Ford built 1,690 M4A3s from June 1942 until September 1943 before stopping Sherman output for some other munitions work. M4A3 manufacturing was then adopted by Grand Blanc from February 1944-March 1945, and various superior characteristics were designed, such as a vision cupola for the commander, 47° hull front, a loader’s hatch, and ‘wet stowage’ for the ammo. This became by far the most innovative M4 series tank with 75 mm gun, the innovations being in range with those in up-gunned 76-mm Sherman variants discussed here.
Total production of improved M4A3: 3,071.

Animated 3D model of M4A3 Sherman tank

Specifications M4A3 Sherman tank


M4A3 ShermanSpecification
Typemedium tank
Engine 500 hp Ford GAA V-8 gasoline engine
Length 19ft 4in (6.27 m)
Width 8ft 7in (2.67 m)
Height 9ft (3.37 m)
Battle weight 68,500 lb (31,554 kg)
Maximum speed 26 mph (42 km/hr)
Cross-country speed 15-20 mph (25-32 km/hr)
Road radius 100 miles (160 km)
Vertical obstacle 2ft (0.61 m)
Trench crossing 7ft 5in (2.29 m)
Fording depth 3ft (0.91 m)
Climbing power 60%


M4A4 (British Sherman V)mmangle
Turret front76?
Turret side51?
Turret rear??
Turret top25?
Turret of M4A3 (details unknown)15-75?
Superstructure front51?
Superstructure side38?
Superstructure rear38?
Superstructure top13-25?
Hull front51?
Hull side38?
Hull rear38?
Hull bottom??
Hull of M4A3 (details unknown)12-50?
Gun mantlet??


M4A3 ShermanSpecification
Main armament 75mm M3 gun
Rounds 97
Traverse 360°
Elevation +25° to -10°
Muzzle velocity 2,300 fps (619 m/s)
Shell weight APC 14.96 lbs (6.88 kg)
Extreme range 14.000 yds (smoke: 2,000; shot: 3,500)
Secondary armament 2 x .30 cal MG (with 4,750 rounds), 1 x .50 cal anti-aircraft MG (1,500 rounds)

Penetration of the 75 mm M3 gun:

rangevs 30° armor
100 ydsc.85 mm
500 yds70 mm
1000 yds59 mm
1500 yds55 mm
2000 yds50 mm

Service statistics:

M4A3 Shermanfigures
Production July 1942 - March 1945
Price per unit $ 44,556-49,997 (£ 11,000-12,500)
Total production figure 4,761 (all models with 75mm gun: 49,230)

References and literature

Krieg der Panzer (Piekalkiewicz)
Operation Barbarossa: the Complete Organisational and Statistical Analysis, and Military Simulation, Volume I – IIIB (Nigel Askey)
British and American Tanks of World War II (Peter Chamberlain, Chris Ellis)
Panzer und andere Kampffahrzeuge von 1916 bis heute (Christopher F. Foss, John F. Milsom, Colonel John Stafford Weeks, Captain Georffrey Tillotson, Richard M. Ogorkiewicz)
Panzerkampfwagen des 1. und 2. Weltkrieges (Andrew Kershaw)
The Encyclopedia of Weapons of World War II (Chris Bishop)
Datafile – British Tanks and Formations 1939-45 (Malcom A.Bellis)
Fire and Movement (RAC Tank Museum)
