German machine gun MG42, the deadliest infantry weapon of WW2.
History, development, service, specifications, statistics, pictures, video and 3D model.

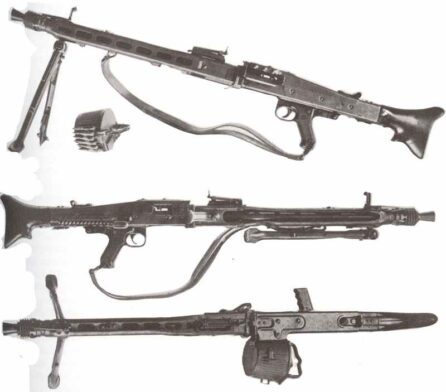

Maschinengewehr Modell 1942 (MG42)

Type: light or heavy machine gun


German mountain troops MG42 gunner
A German mountain troops MG42 gunner is engaging a far distance target in the Caucasus.

When the production of MG34 models was obviously insufficient for the German Army’s needs, a new design of weapon was begun, one which would be easier to mass-produce. For the first time the design was not left entirely in the hands of gun makers; a Doctor Grunow of the Johannes Grossfuss Metall und Lackierwarenfabrik at Doebeln, experts in pressing and stamping metal, was called in to advise at an early stage in design. As a result the final design was specifically laid out to suit stamping and pressing processes, with welding and riveting used for assembly.

The action of the MG42 was modified to use a non-rotating bolt locking into a barrel extension by two rollers caromed outwards. Unless the rollers were out, locking the breech, the firing pin could not pass through the center of the bolt. On recoil the barrel, bolt and barrel extension recoiled locked together until cam tracks in the gun body moved the rollers inwards to release the bolt.
Movement of the bolt drove a feed arm mounted in the top cover of the gun which in turn operated paws to feed the ammunition belt; the design was most ingenious and fed the belt smoothly and reliably and has been widely copied in other weapons since its original appearance in the MG42.

One of the results of the re-design was to raise the rate of fire to an astonishing 1,200 rpm, much higher than any other contemporary machine gun and a rate which has only rarely since been exceeded. As a result the barrel had to be designed for quick-changing – every 250 rounds was the recommended figure – and this was done by unlatching the breech end and swinging it out through a long slot in the right-hand side of the barrel casing; a fresh barrel could be fitted in five seconds.

As with the MG34, the MG42 was used on a bipod as a light machine gun or on a tripod as a medium gun, though the high rate of fire made it difficult to control on a bipod. It was extremely reliable, highly resistant to dust and cold conditions and was extremely popular with the Wehrmacht – and understandably less popular with their enemies. Its first use in action is said to have been by the Afrika Korps at Gazala in May 1942. Shortly thereafter, it was also deployed in Russia and from then on every German front until the end of the war.

Through the use of the MG 34 and MG 42, an infantry platoon of the Wehrmacht reached about a firepower surplus of 1.6 against their opponents, which clearly affected the fighting power and was responsible for a considerable portion of the Allied infantry losses. Considering that the majority of all battles over hundreds of front miles are mainly carried by the infantry, a considerable advantage for the German troops.
On the Omaha Beach at the Allied invasion of Normandy on June 6, 1944, a single machine gunman with 5 men in support was responsible for 2,000 losses from the American troops.
The machine guns MG 34 and MG 42 caused more losses to the Allies than all so-called ‘wonder weapons’ from the King Tiger, V-1, V-2, Me 262 jet fighters to the Type XXI U-boat together.

It has been reported that 750,000 (confirmed are 414.964 for the Wehrmacht; without Waffen-SS and other arms) MG42s were made before the war ended.
However, the MG42 never completely replaced the MG34 as planned. Both models were built until the end of the war, so that the MG42 merely added the MG 34, though energetically!

At the war’s end many countries who seized stocks of the guns adopted them into their own armies, among them France and Yugoslavia, and when the German Bundeswehr was reconstituted and required a machine gun they simply put the MG42 back into production in 7.62 mm NATO caliber as the MG1. An interesting point about this is that the original engineering drawings were destroyed at the end of the war, and the draftmen had to obtain an MG42 from a museum in the USA, strip it, and produce fresh drawings to guide manufacture.

Users: Germany, Italy.

Animated 3D model of MG42

Specification MG42


Typelight or medium machine gun
Length48.0 in
Weight25 lb 8 oz
Barrel 21.0 in long, 4 grooves, right hand twist
Feed systemBelt
System of operation Recoil; roller locking
Muzzle velocity 2,475 feet/sec
Rate of fire 1,200 rpm (with exchanging of barrel)

Service statistics:

Manufactures Mauserwerke AG, Berlin
First useMay 1942
Final delivery May 1945; after WW2 continued as MG1 for the German Bundeswehr
Production 1942 (all mmachine guns for infantry) 77,340
Production 1943 (all machine guns for infantry) 165,527
Production 1944 (all machine guns for infantry) 278,164
Production 1945 (only January-February; all machine guns for infantry) 56,089
Production figure minimum 414,964 (delivered to Wehrmacht)
Monthly production winter 1944-45 17,500
Price per unit RM 250 = ~ $115, ~ £24

Video: Firing the MG42


References and literature

The Encyclopedia of Infantry Weapons of World War II (Ian V.Hogg)
Infanterie im 2. Weltkrieg (J.B.King, John Batchelor)
Illustriertes Lexikon der Waffen im 1. und 2. Weltkrieg (V. Dolinek, V. Francev, J. Sach)
The Encyclopedia of Weapons of World War II (Chris Bishop)
