Macchi C.205V Veltro

Macchi C.205V Veltro, the best Italian fighter plane of WW2.
History, development, service, specifications, pictures and 3D model.

Macchi C.205V Veltro
Macchi C.205V Veltro

Macchi C205V Veltro
Type: Italian single-seat fighter.

History:

The birth of the best Italian fighter plane of WW2, the Macchi C.205V Veltro was harassed by high authorities within the Italian Air Ministry who, for some reasons, preferred to support the all-new Fiat G.55 Centauro and Reggiane Re 2005 instead of moving ahead at a much faster pace with a natural development of an already well-established MC.202 Folgore.

In fact, the Macchi C.205V was designed to rectify a number of shortcomings which plagued its predecessor, principally its light armament. Sharing 80% commonality with the MC.202, the C.205 was re-designed with a German Daimler-Benz DB605 RC58 engine and was planned to have an armament of two Mauser cannon in the wings.

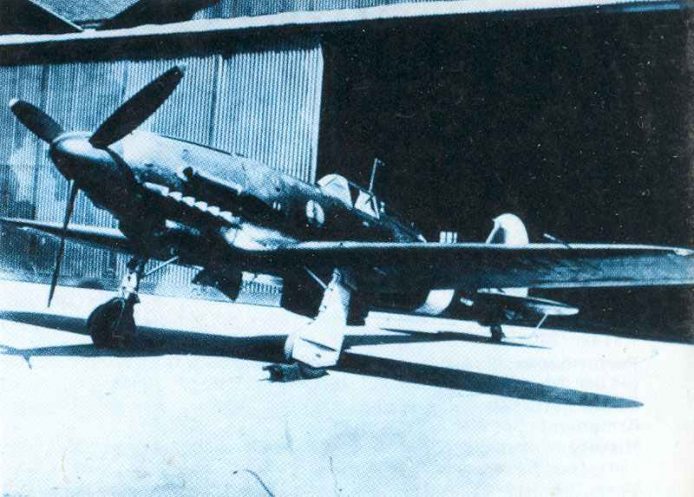

Powered by an original German engine, the first prototype flew for the first time on 19 April 1942. Immediate impressions were highly favorable, the aircraft appeared to perform much better than the C.202, and handled beautifully.

The first production machine was rolled out of the Macchi plant at Vanese in October 1942, barely six months after the type’s first flight. This was to be one of a pre-production batch of 100 examples. The only difference from the prototypes was in the installation of a Fiat-built DB605-engine.

Production kicked off with a mere trickle, the SMA insisting that the C.202 and obsolete C.200 production lines remain open in parallel with that new machine. Delays in delivery of DB605-engines resulted in a month output of some nine or ten C.205 a month up to the end of 1942, and it was only in February of the following year that production doubled.
This was still far below the monthly average of 50 C.202 being produced parallel. Moreover, the 20 mm Mauser cannon was even harder to produce than the engines, and most of the first 100 examples had to be fitted with 7.7 mm machine guns similar those of the C.202.

Service debut of the C205s came in February 1943, when four examples joined the C.202’s of the 1 Stormo of the Regia Aeronautica at Sicily and Pantelleria, and by end of the March the number had risen to 21.

The aircraft had its first combat mission on April 7 over Tunisia, when fighters from Pantelleria escorted naval and aerial convoys plying between Italy and North Africa. On that day, they encountered superior numbers of Spitfire V and Curtiss P-40 fighters, obtaining significant results. In fact, by April 19, they had claimed 18 Allied aircraft destroyed.
During the Allied invasion of Sicily the 51 Stormo, one of the elite fighter units of the RA, was heavily involved in defending Sardinia, bagging ten P-40s for the loss of three C.205 by the end of July.




In aerial fighting, the Veltro was proving to be a successful aircraft, chalking up an impressive tally – for example, on 2 August, six C.205V faced a much higher number of P-38 Lightning and P-40 fighters, shooting down five American aircraft for the loss of one Macchi.


After the armistice and the creation of Mussolini’s National Republican Air Force (ANR) the C.205Vs were first blooded during their operational debut on January 3, 1944, when 1st Gruppo opposed a massive USAAF bomber formation. The sizeable formation of B-17 Fortress were escorted by P-38 Lightnings. Within a few seconds three Allied fighters went down, without losses by the Italians.

In mid-April the C205V-Gruppo was required to move south to Reggio Emilia. This meant that the fighters were now within range of Spitfire IX and P-51 Mustangs. While on patrol, the Gruppo had to taste bitter experience with the formidable P-51, which proved decidedly faster. On this first encounter two pilots were shot down in their C.205Vs; however on May 2 the pilot Fiorini managed to score the first Mustang victory.

Towards the end of May 1944, units operating C.205V could not replace their losses anymore, as Macchi production lines at Vanese had been nearly wiped by USAAF bombing. Thus, the units started to convert to Fiat G.55 Centauro.
The last Macchi C205V’s were out of service in mid-August 1944.

The ANR’s (only for the National Republican Air Force) record for this type shows that the C205V had destroyed 115 Allied aircraft, with a further 45 probable to the loss of 55 C.205Vs and 49 pilots killed.

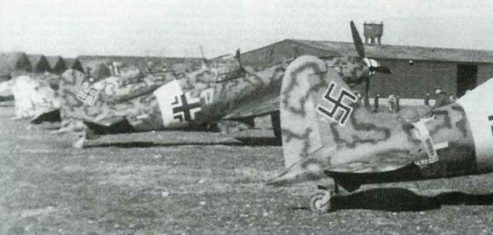

Users: Italy, Germany (only for training).

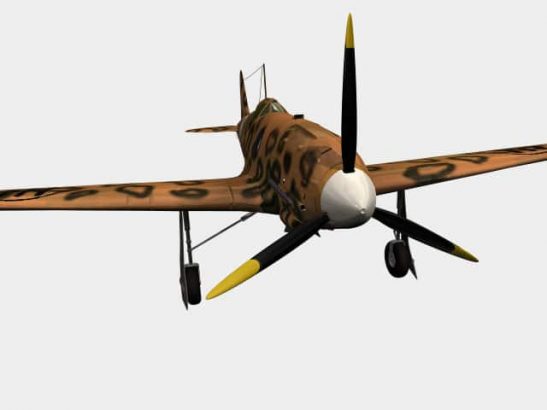

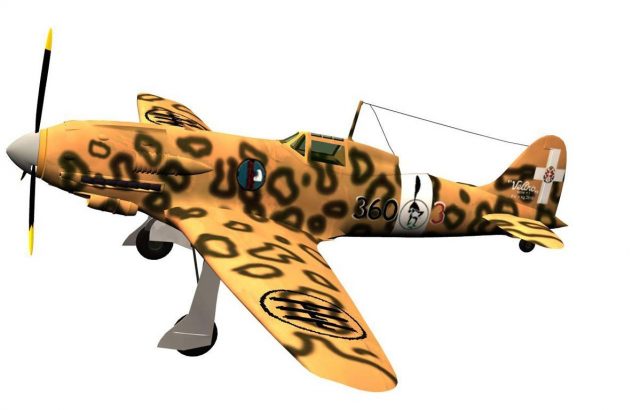

Animated 3D model Macchi C.205V Veltro


Specifications Macchi C.205V Veltro

Specifications:

MC.205V Specification
Typesingle-seat fighter
Power plant one license-built Daimler-Benz DB605A-1 (called Fiat RA1050 RC58 Tifone) engine with 1,475 hp
Accommodation1
Wing span 34 ft 5.4 in (10.50 m)
Length overall 29 ft 0.4 in (8.85 m)
Height overall 10 ft (3.05 m)
Wing area 16.8 m²
Weight empty 5,572 lb (2,524 kg)
Weight full loaded 7,117 lb (3,224 kg)
Maximum speed 399 mph; 376 mph in 24,606 ft (642 km/hr; 605 km/hr in 7,500 m)
Climb rate 5.05 min to 19,685 ft (6,000 m)
Service ceiling 37,238 ft (11,350 m)
Range 646 miles (1,040 km)
Take-off-run minimum 312 yds (285 m)


Armament:

MC.205V Specification
in fuselage 2 x 12.7mm Breda-SAFAT machine guns (400 rounds each)
in wings 2 x Mauser MG151/20 (720 rpm; velocity 1,920 ft.sec; 250 rounds each)
external load two bombs up to 353 lb (160 kg) or fuel tanks

Service statistics:

MC.205V figures
First flight19 April 1942
Production deliveryOctober 1942
Service deliveryFebruary 1943
First combat mission April 7, 1943
Final deliveryMay 1944
Total production figureTotal: 250
ANR Lost in Combat January-August 194455
Enemies claimed Destroyed in air by ANR January-August 1944115


References and literature

Combat Aircraft of World War II (Bill Gunston)
Technik und Einsatz der Kampfflugzeuge vom 1. Weltkrieg bis heute (Ian Parsons)
Das große Buch der Luftkämpfe (Ian Parsons)
Luftkrieg (Piekalkiewicz)
Flugzeuge des 2. Weltkrieges (Andrew Kershaw)
Italian Aircraft of World War II (Nico Sgarlato)
The Macchi C.205V veltro (Sampublications)
The Encyclopedia of Weapons of World War II (Chris Bishop)
Kampfflugzeuge (Bill Gunston)


for sharing:

1 thought on “Macchi C.205V Veltro”

  1. I like the medium altitude Veltro. It had a better roll rate than the Bf 109G as well as better turn, dive and climb. It was inferior at high altitude however.
    One wig was longer than the other to help offset torque, but it still could auto-rotate if stalled in a hard turn. The Luftwaffe was impressed enough to equip one of their groups with the Veltro.

    I like the rivals from Fiat and Regianne better because of their high altitude performance. The G.55 Centauro and Re.2005 Sagittario. They turned better and had more range than the Veltro or anything in the Luftwaffe. But less were produced. They all had good rear view compared to the Bf 109 too. But their radios were bad.
