Me 109 G

German Messerschmitt Bf 109 Gustav fighter plane.
History, development, service, specifications, pictures and 3D model of the main version of the Me 109.

the best preserved Me 109

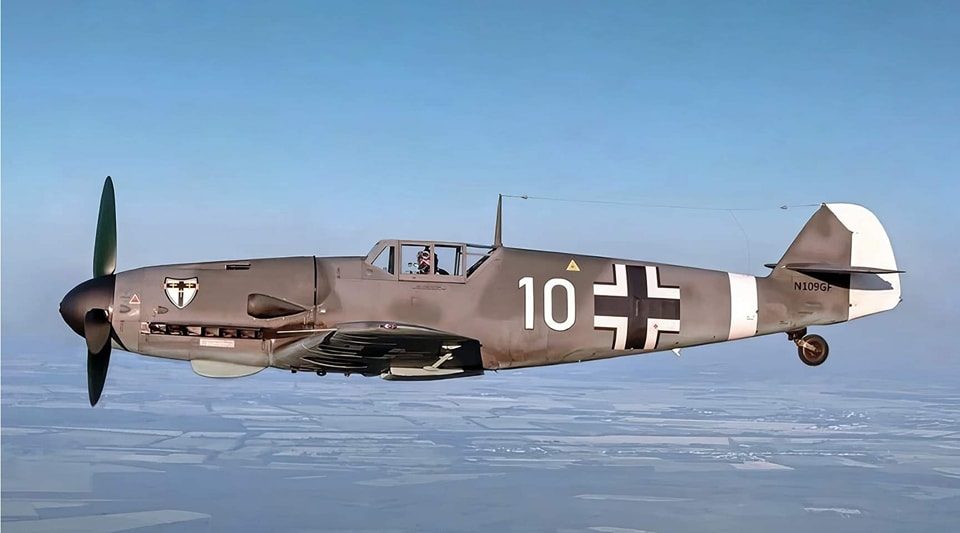

Today’s probably the best preserved Me 109 is this Bf 109 G-2 Gustav, which was captured in 1942 in North Africa.

Messerschmitt Bf 109 G
Type: German Luftwaffe single-seat fighter.

History:

The wartime requirement for greater power in single-seat fighters, especially after the Battle of Britain, led to the development in the early summer of 1942 the Me 109 G with the more powerful DB 605 A engine. With a take-off power of 1,475 hp, this engine gave the ‘Gustav’ a speed of about 650 km/h at a height of 6,000 meters. The new airframe featured a stronger undercarriage, a larger oil-tank, the previously available pressurized cockpit, provision for fitting the GM-1 nitrous oxide injection system, rear armor and head protection for the pilot, and roller-bearing-mounted slats. It could also be fitted with a bomb-rack or drop-tank.

As early as the autumn of 1941 a zero-series of several models was tested with the DB 601 E engine. The Bf 109 G-1 was conceived as a single-seat high-altitude fighter with a pressurized cabin. The aircraft went to II/JG1, and later a few went to II/JG26 as equipment for high-altitude squadrons. At the end of 1942 they first saw action in the Mediterranean.

Series production of the Me 109 G-2 without the pressurized cabin began in parallel production of the Me 109 G-1, and G-2 aircraft were supplied in the summer of 1942 to, among others, Jagdgeschwader JG 2, 3, 5,27, 62, 53, 54 and 66, as well as different reconnaissance groups.

Next came the Me 109 G-3, which was the second ‘Gustav’ to have a pressurized cockpit. From 1943 this type was used in small numbers by high-altitude squadrons and by Reserve Fighter Group West. From May 1943 fitting of the GN-1 injection system began.

By August 1942 the Me 109 G-4 was being produced in considerable numbers and this version went into active service in November.

The Me 109 G-5 was the last of the series to be built as high-altitude fighters with pressurized cockpit. With the introduction of the more powerful Me 109 G-6, the G-5 had only limited application in the fighter groups.

In February 1943 the Me 109 G-6 was introduced and from then until the summer of 1944 was produced in large numbers to become a major component of national defense. The first aircraft of this series differed only slightly from the G-4, the two MG17s mounted above the engine being replaced by MG131s. It had not been possible to accommodate an ammunition supply within previous engine cowling designs, but from the G-6 typical bulges were incorporated for this purpose on both sides of the forward fuselage.
To improve pilot safety, the aircraft were fitted from 1943 with the so-called ‘Galland Armour’ with armored glass, and somewhat later, with the ‘Erla Canopy’ or sometimes called ‘Galland Canopy‘. Further modifications consisted of a partial removal of the radio aerial behind the cockpit. In the early months of 1944 an increasing number of Bf 109 G-6s had larger fins with an integrated servo-rudder.
To increase engine power at greater heights, the DB 605 AS was introduced in early 1944; this was a DB 605 A engine with more powerful supercharger of the DB 603. As the engine was considerably larger, the cowling of the Bf 109 G/AS was completely modified. At the same time the ammunition supply for the MG131 was streamlined, and a new propeller was introduced. The first of this more powerful aircraft were introduced at the beginning of 1944 in III/JG1 and I/JG5. Part of the older series was re-equipped to AS standard.

The Me G-8 series was a modification of the Bf 109 G-6 for a close reconnaissance role, and the Bf 109 G-10, which was introduced in the late summer of 1944, represented an adaptation of older aircraft to the realities of air warfare. Using various components the G-type, an approximation to the power spectrum of the Bf 109 K-4 was reached. Since the DB 695 D engine was not available in sufficient numbers, the DB 605 AS had to be used instead. The fuselage consisted of parts of the G-6 or K-4 series, the wing came from the Bf 109 G-2, G-14 and K-4, and the fixed armament from the G-5. The majority of the early G-10s went to Jagdgeschwader 1, 3, 4, 6, 27 and 77. In addition, these types were also found in the three groups of JG300. After production was stepped up, deliveries were made to II/NJG 11 and I/KG(J)6. Some aircraft also went to reconnaissance units.
The G-10 was often used as escort and high-cover for Fw 190 fighter-bombers, which were increasingly being equipped ‘Panzerblitz’ and Panzerschreck anti-tank missiles.


From the middle of 1944 some 145 older Me 109 G-2, G-3, G-4 and G-6 aircraft were rebuilt as Bf 109 G-12 two-seat trainers, mainly by Blohm&Voss.

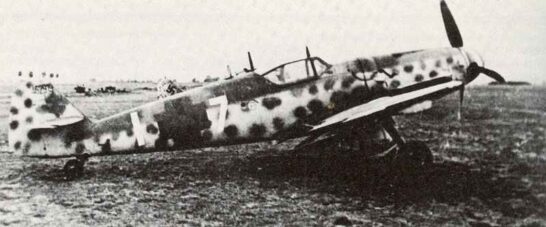

The G-14 was the last model in the G-Series. The first aircraft were supplied to JG 4, 76 and 77 in France in June 1944, and later to virtually all Jagdgeschwader. Among others, they were supplied as replacements to Kampfgeschwader I/KG(J)6, I/KG(J)27 and II/KG(J)30, as well as to the first two groups of KG(J)55. Some of this type also went to NJG11 and NAG 1,2,3,4 and 14.


Animated 3D model Messerschmitt Bf 109 G-2/Trop


Specifications Messerschmitt Bf 109 G-2

Specifications:

Bf 109 G-2 Specification
TypeSingle-seat fighter
Power plant 1 x 1,475 PS DB 605A-1
Accommodation1
Wing span32 6.7 ft
Length overall29 ft 0.3 in
Height overall10 ft 6 in
Wing area174.38 sq ft
Weight empty 5,897 lb
Weight loaded 6,940 lb
Max wing loading39.82 lb/sq ft
Max power loading4.70 lb/hp
Max level speed 386 mph (at 22,660 ft)
Cruising speed 311 mph (at 19,685 ft)
Initial climb c. 3,500 ft/min.
Time to height 16,405 ft in c. 5.0 min
Service ceiling 38,000 ft
Range c. 621 miles

Armament:

Bf 109 G-2 Specification
through propeller hub 20-mm MG151/20 (720 rpm; velocity 1,920 ft.sec)
above engine 2 x 7.92-mm MG17 (1,200 rpm; velocity 2,477 ft.sec)

Service statistics:

Bf 109 G-2 figures
Production deliveryMay 1942
First combat missionsummer of 1942
Final delivery (all variants)May 1945 (Germany)
Price per unit RM 100,000 = c. $ 45,000 = c. £ 11,250
Total production figure (all variants) 35,000+ (30,480 during WW2)
Accepted by Luftwaffe 1/39-12/44 29,350
Production 1939449
Production 1940 1,693
Production 1941 2,764
Production 1942 2,665
Production 1943 6,154
Production 1944 13,786
Production 1945 2,969
Me 109's in First Line Units 1.9.39 1,085
Me 109's in First Line Units 20.9.42 1,074
Me 109's in First Line Units 31.12.42 700 (of these 610 G models)
Me 109's in First Line Units 10.1.45 1,305


References and literature

German Aircraft of World War 2 in Colour (Kenneth Munson)
Warplanes of the Luftwaffe (David Donald)
The Luftwaffe Album, Bomber and Fighter Aircraft of the German Air Force 1933-1945 (Joachim Dressel, Manfred Griehl)
Luftwaffe Handbook (Dr Alfred Price)
Messerschmitt Bf 109F-G in Luftwaffe & Foreign Service (Aircam Aviation Series No 40)
Combat Aircraft of World War II (Bill Gunston)
Technik und Einsatz der Kampfflugzeuge vom 1. Weltkrieg bis heute (Ian Parsons)
Das große Buch der Luftkämpfe (Ian Parsons)
Luftkrieg (Piekalkiewicz)
Flugzeuge des 2. Weltkrieges (Andrew Kershaw)
The Encyclopedia of Weapons of World War II (Chris Bishop)
